Microsquirt

Wiring Diagrams for Microsquirt

Main Power and Fuel System

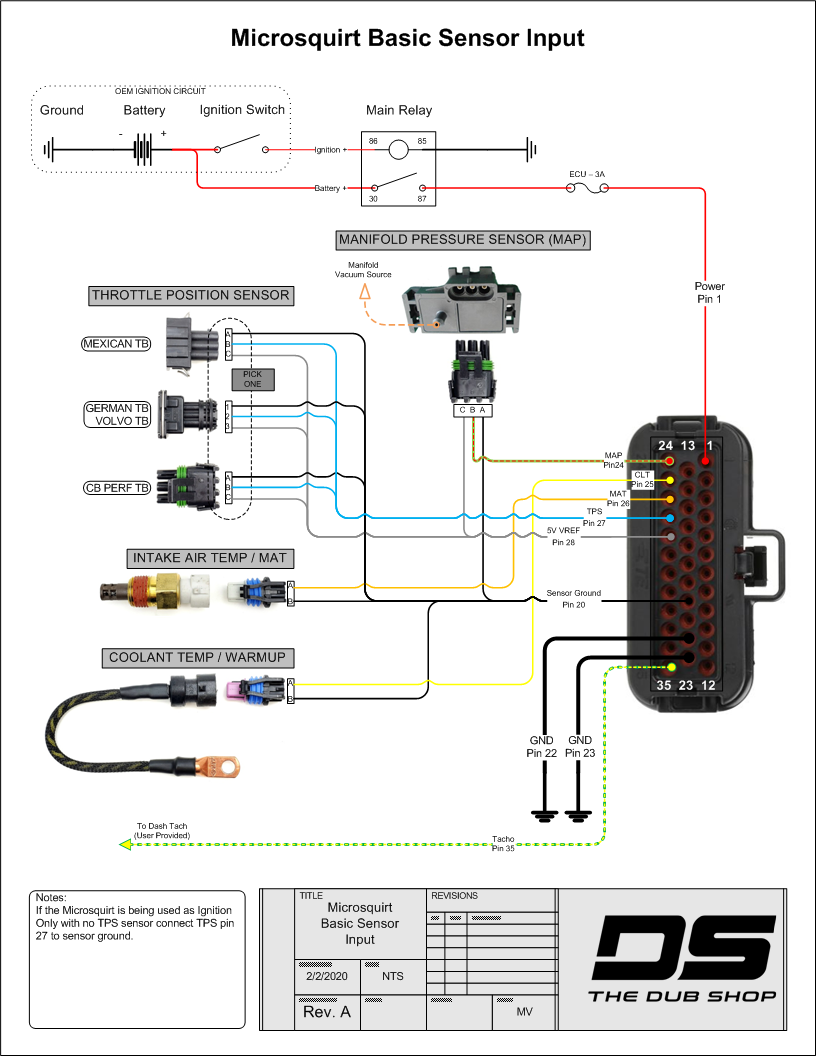

Basic Sensors
microsquirt-main-power-circuit-reva.png microsquirt-basic-sensors-reva.png

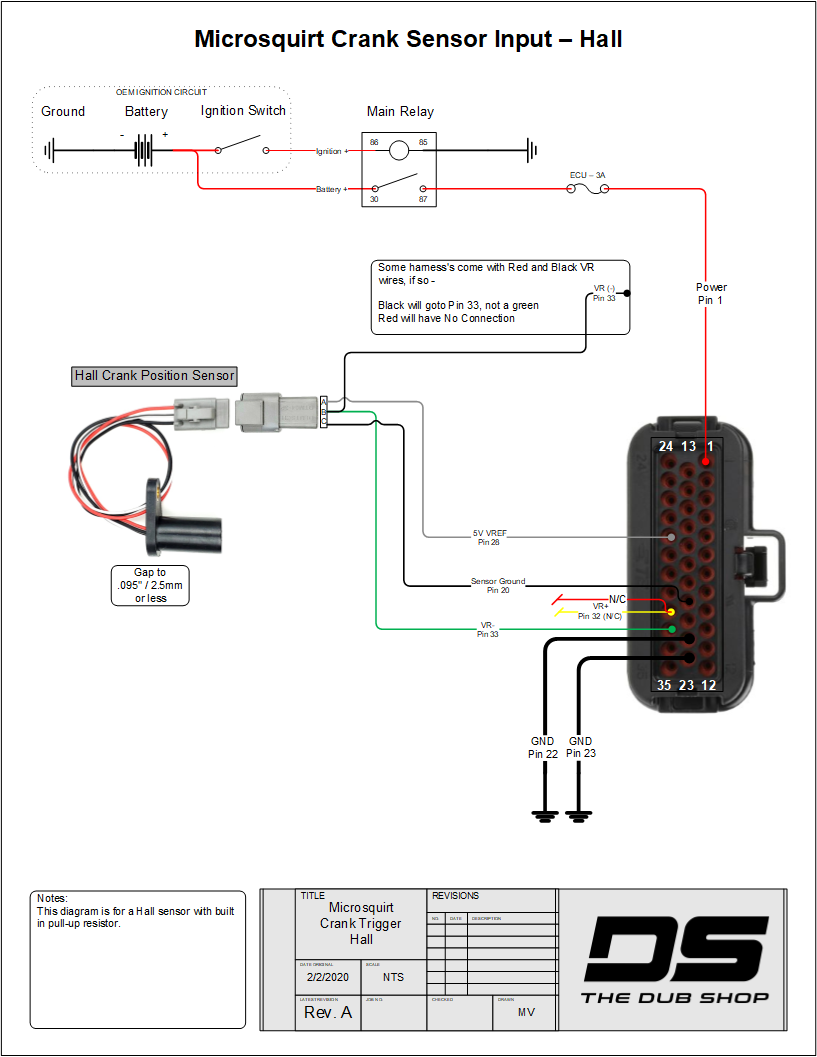

Crank Sensor - Hall

Crank Sensor - VR
microsquirt-crank-sensor-hall-revb.png microsquirt-crank-sensor-vr-revb.png

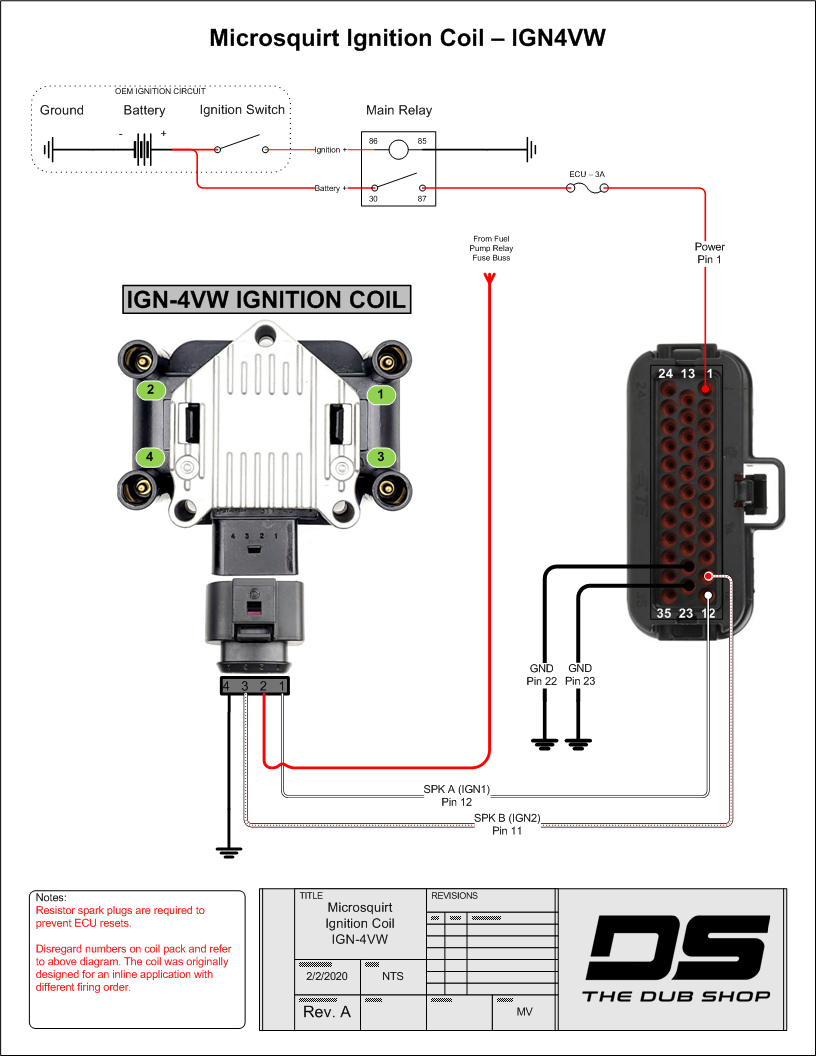

IGN-4VW Wasted Spark Coil

LS2 Wasted Spark Coils
microsquirt-ignition-coil-ign4vw-reva.png microsquirt-ignition-coil-ls2-ws-reva.png

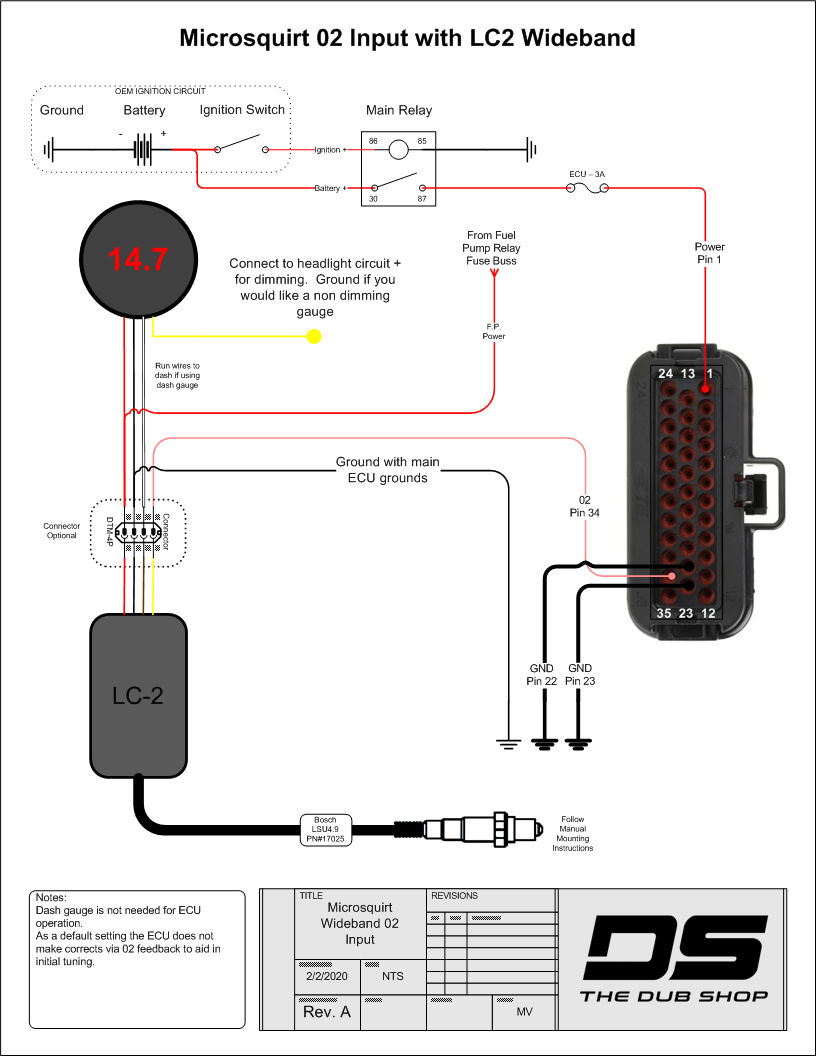

LC-2 Wideband Controller

Connecting your Innovate LC-2 wideband controller to the relay board and optional dash gauge




 Additional Options

Adding a Barometric Pressure Sensor for constant fuel correction

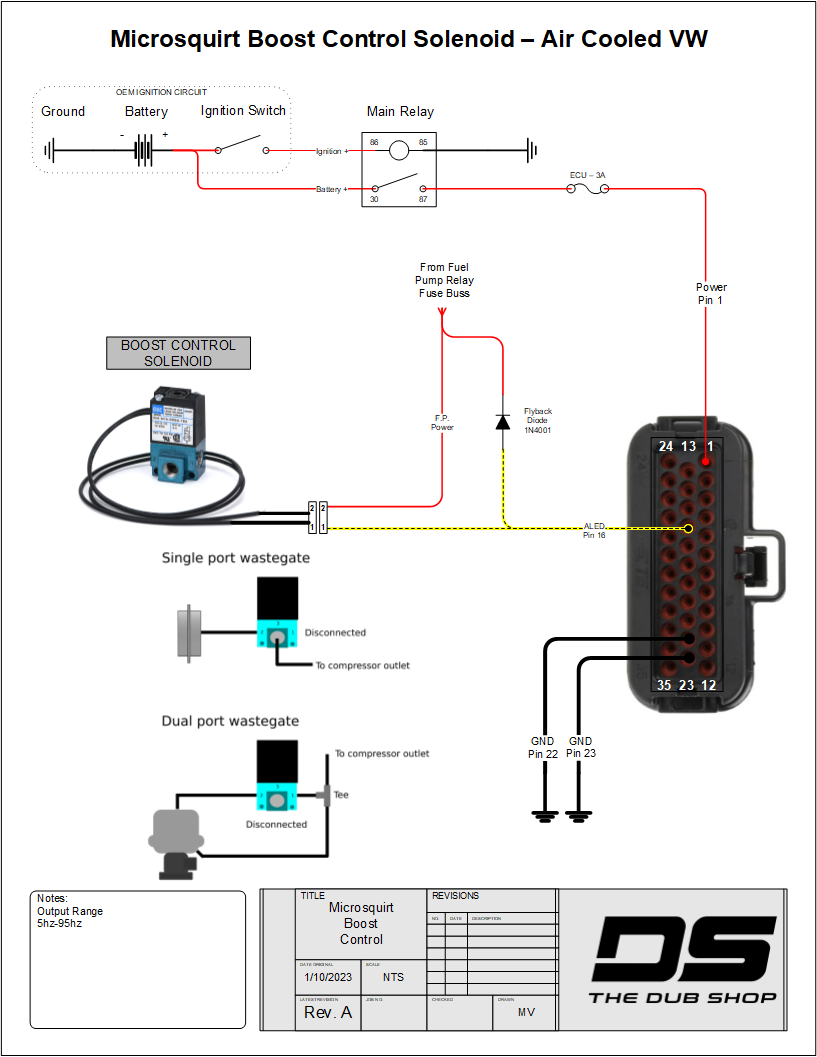

Adding Electronic Boost Control


Adding Launch Control









!
