Type 1 Crank Trigger - King

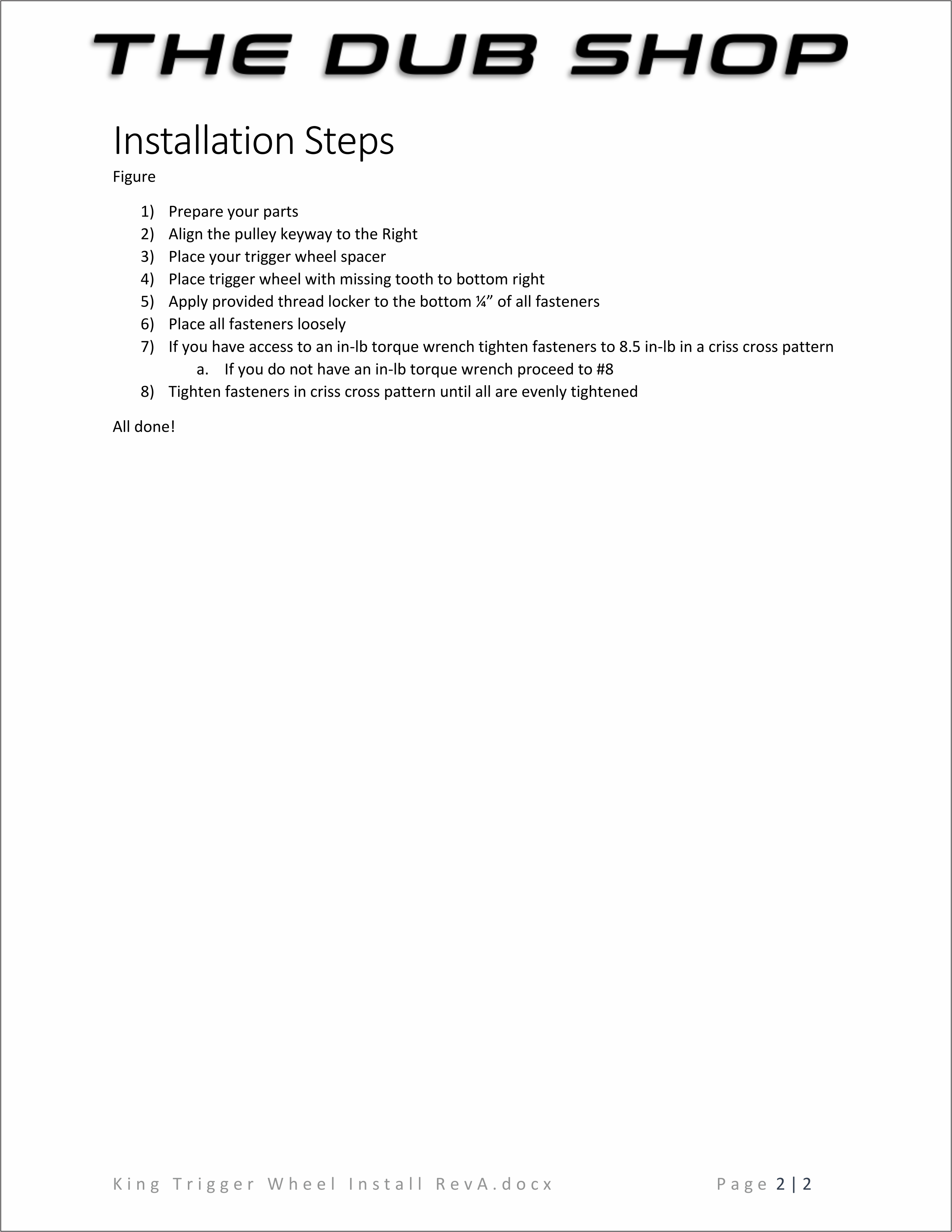

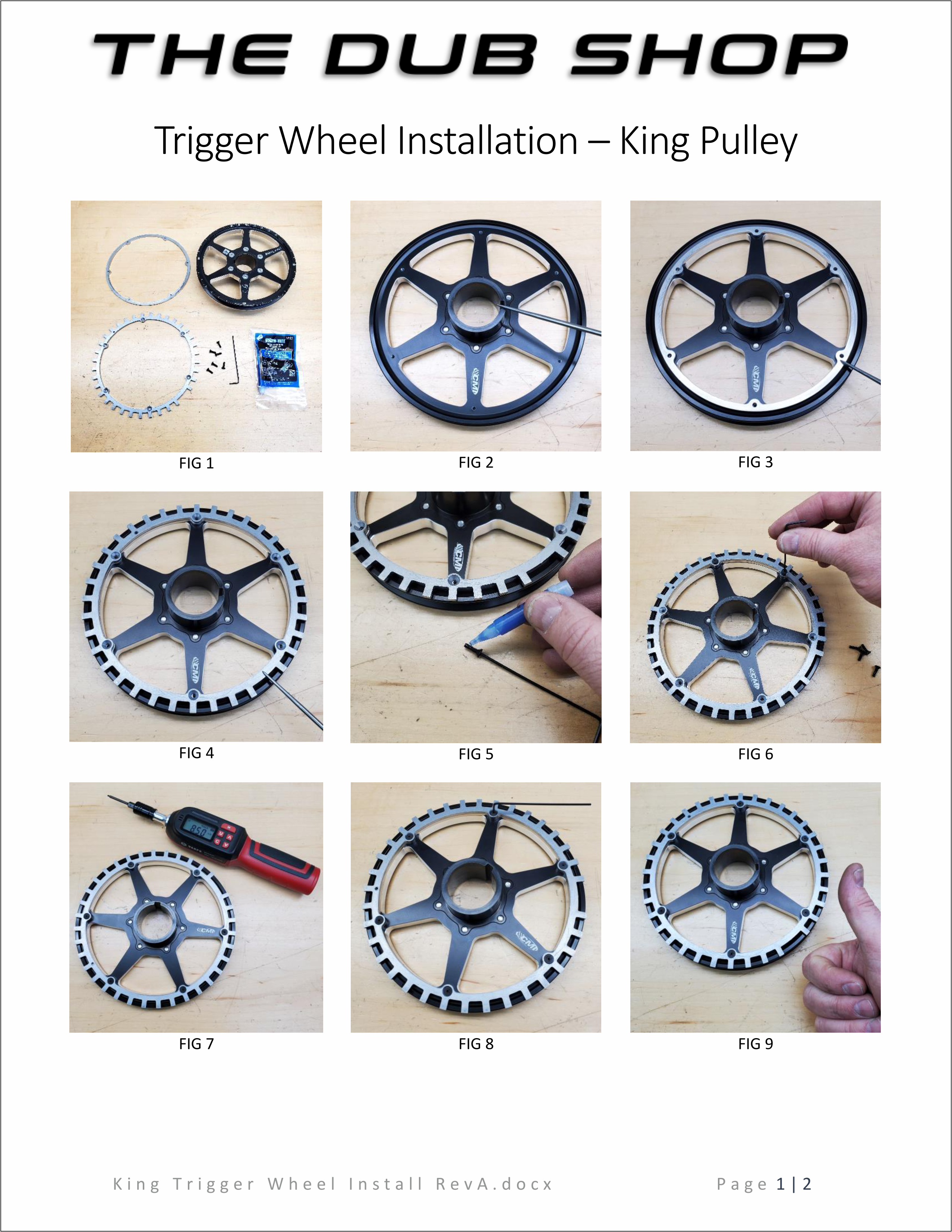

king-trigger-wheel-install-reva-p1.png   king-trigger-wheel-install-reva-p2.png

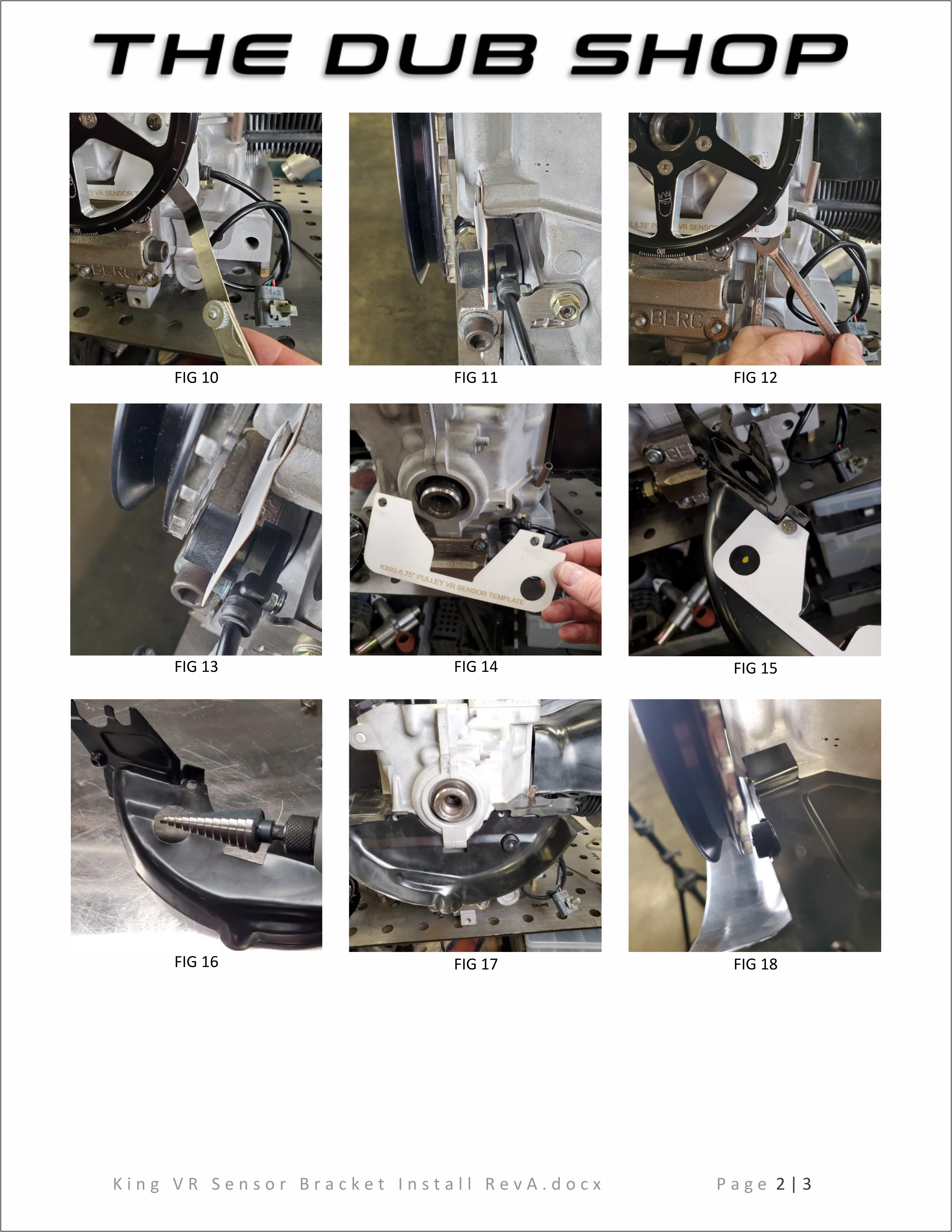

king-vr-sensor-bracket-install-reva-p1.png   king-vr-sensor-bracket-install-reva-p2.png




Hall Sensor Wiring:
Brown - 5-24V Input
Blue - Sensor Ground
Black - Sensor Output

Pullup Resistor Required (Input to Signal)
5v 9V 12V 16V 24V
1K 1.8K 2.4K 3K 3K



VR Sensor Wiring:
Red - VR (+)
Green - VR (-)
Black - (Shield)

Alternate VR sensor Wiring:
Red - VR (+)
White - VR (-)
Black - (Shield)

ECU Configuration:
Megasquirt 2 / Megasquirt 3
