TDS Specific Wiring Diagrams

Below are wiring diagrams specific the The Dub Shop. If you would like a more generic type diagram please refer to the manual of the ECU you are using. Those can be found here, refer to the hardware manual section.


Crank Trigger
VR Sensor
IGN4 Coil Pack


Crank Trigger
Hall Sensor
IGN4 Coil Pack


Distributor Based
Fuel Only


LC2 Wideband Controller

Choose your Installation type above

Fuel Only

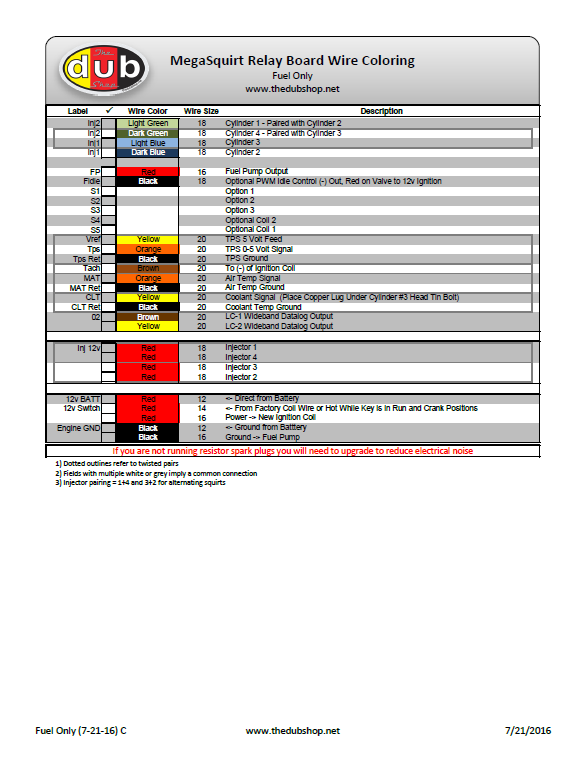

General Relay Board Wiringwire3.png

Wiring Harness Base

Here are the basic harness legs included in a Fuel Only application, or a complete installation.

  • Intake Air Temperature (IAT) also called Manifold Air Temperature (MAT)
  • Warmup / Coolant temperature
  • Throttle position sensor
  • Fuel injectors
  • Fuel Pump

Intake Air Temperature Sensor

Warmup / Coolant Temperature Sensor Fuel Injectors
Intake Air Temp Sensor Coolant / Warmup Sensor Fuel Injector Connectors
Throttle Position Sensor (Universal) Throttle Position Sensor (CB) Fuel Pump
Throttle Position Sensor Connector   Fuel Pump Harness

Hall Sensor / IGN4

General Relay Board Wiring


Detailed Relay Board Wiring

Fuel System

 Basic Sensors

 Hall Crank Sensor

 IGN-4 Wasted Spark Coil

ms2-v357-relay-board-fuel-system.png ms2-v357-relay-board-basic-sensors-revb.png ms2-v357-relay-board-hall-crank-sensor.png ms2-v357-relay-board-ign4-wasted-spark-revb.png



Wiring Harness Additions

These are the additional wiring harness components added to the Fuel Only system found at the top

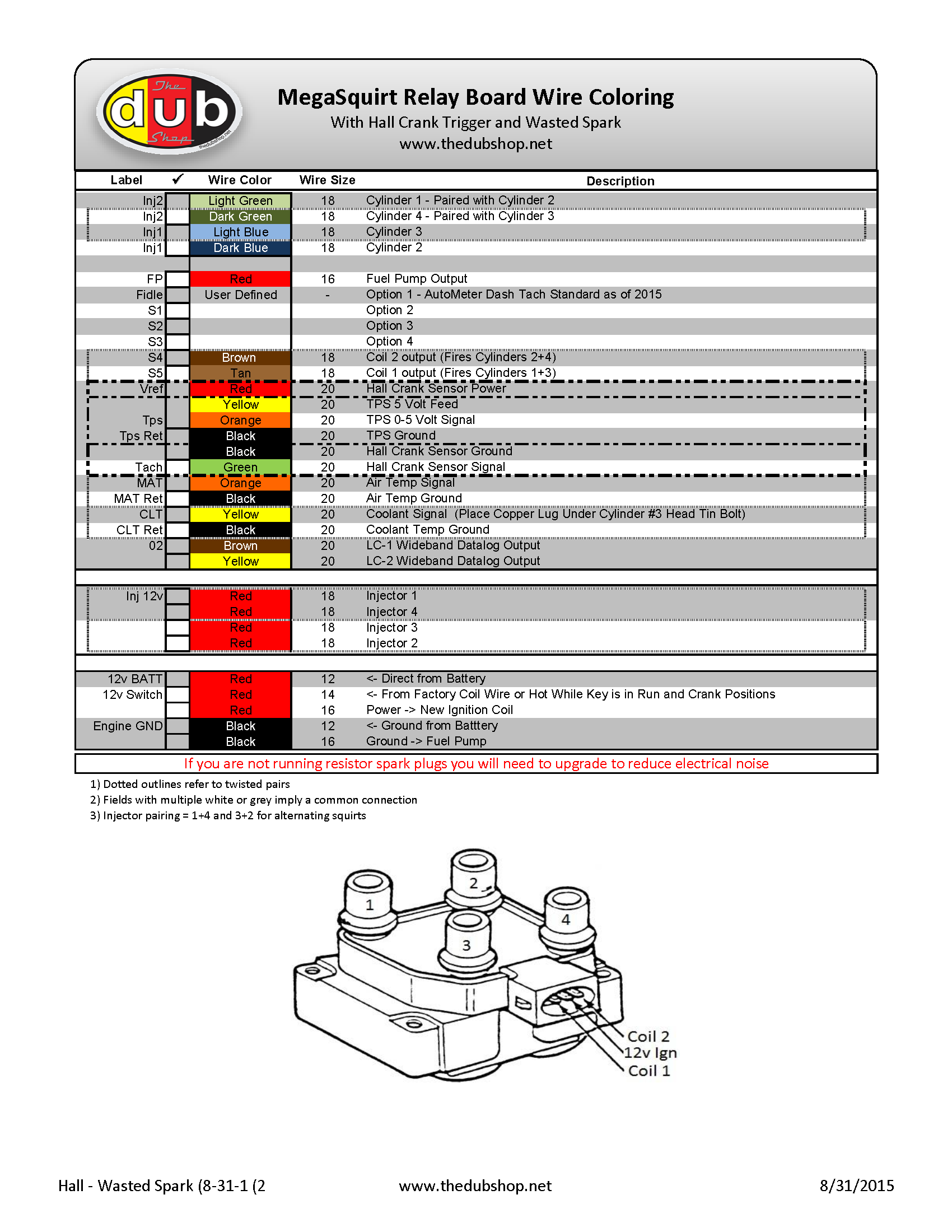

  • Hall crank position sensor
  • IGN-4 wasted spark ignition coil
 Hall Crank Sensor    IGN-4 Wasted Spark Coil
crank sensor hall   IGN-4 Coil Pack

VR Sensor / IGN4

General Relay Board Wiring


Fuel System

 Basic Sensors

 VR Crank Sensor

 IGN-4 Wasted Spark Coil

ms2-v357-relay-board-fuel-system.png ms2-v357-relay-board-basic-sensors-revb.png ms2-v357-relay-board-vr-crank-sensor.png ms2-v357-relay-board-ign4-wasted-spark-revb.png



Wiring Harness Additions

These are the additional wiring harness components added to the Fuel Only system found at the top

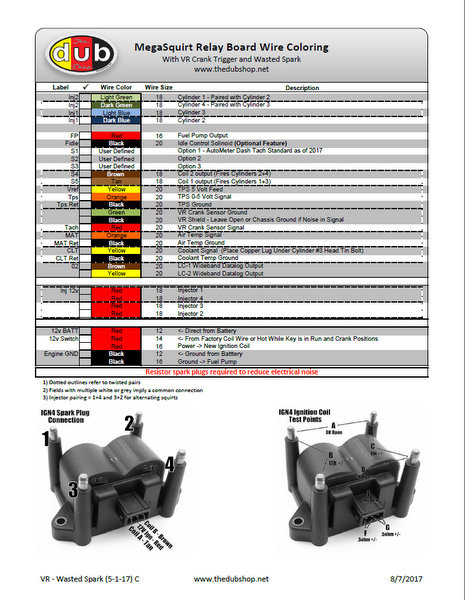

  • VR Crank Position Sensor
  • IGN-4 wasted spark ignition coil
 Hall Crank Sensor    IGN-4 Wasted Spark Coil
VR crank position sensor   IGN-4 Coil Pack



LC-2 Wideband Controller

Connecting your Innovate LC-2 wideband controller to the relay board and optional dash gauge







Special non standard configuration options

IGN4-VW Wasted Spark coil to MS2 v3.57



LS2 Logic coils running as wasted spark to MS2 v3.57
